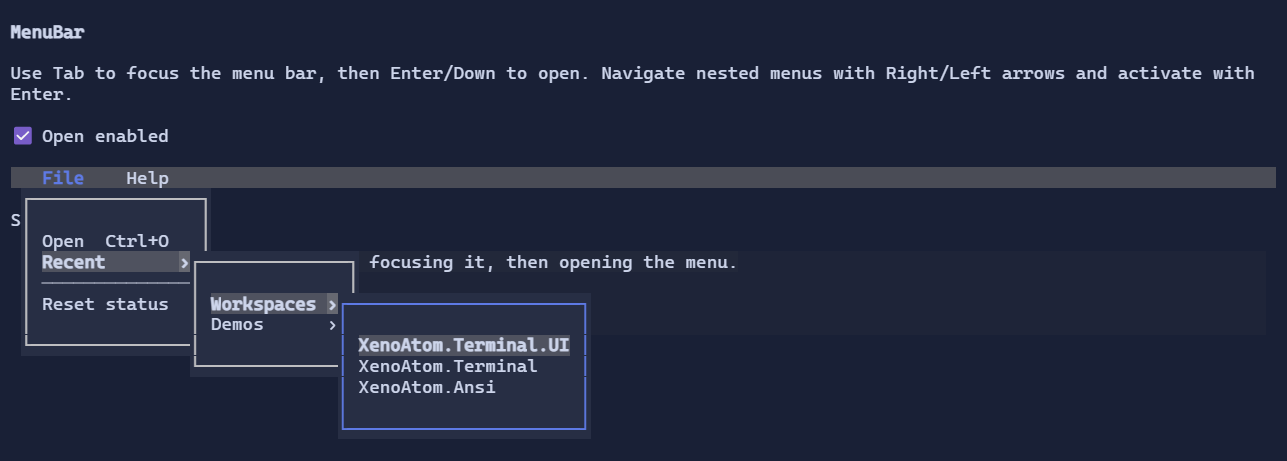

MenuBar

MenuBar provides application chrome with menus and keyboard navigation.

MenuBar

Fullscreen-only

Menus are implemented as popups and require a fullscreen Terminal.Run(...) app.

Usage

Use MenuItem to build menus and submenus. Menu interaction supports keyboard and mouse.

Menu items can be backed by a Command:

using XenoAtom.Terminal;
using XenoAtom.Terminal.UI.Commands;
using XenoAtom.Terminal.UI.Controls;
using XenoAtom.Terminal.UI.Input;

var open = new Command
{
    Id = "App.Open",
    LabelMarkup = "[primary]Open[/]",
    Gesture = new KeyGesture(TerminalChar.CtrlO, TerminalModifiers.Ctrl),
    Presentation = CommandPresentation.Menu,
    Execute = _ => { /* ... */ },
};

var menuBar = new MenuBar();
menuBar.Items.Add(new MenuItem("File")
    .Items(
        new MenuItem("Open", open),
        MenuItem.Separator(),
        new MenuItem("Exit", () => { /* ... */ })));

When MenuItem.Command is set:

  • enabled state is derived from Command.CanExecuteFor(...)
  • the shortcut label is derived from Command.Gesture / Command.Sequence unless MenuItem.Shortcut is explicitly set

Menus are displayed in Popup windows. You can customize the chrome around the menu list (e.g. add/remove a border) by overriding MenuListStyle.PopupTemplateFactory via the visual environment:

using XenoAtom.Terminal.UI.Styling;

menuBar.Style(MenuListStyle.Default with
{
    PopupTemplateFactory = null, // no wrapper
});

Defaults

  • Default alignment: HorizontalAlignment = Align.Start, VerticalAlignment = Align.Start
