ProgressTaskGroup

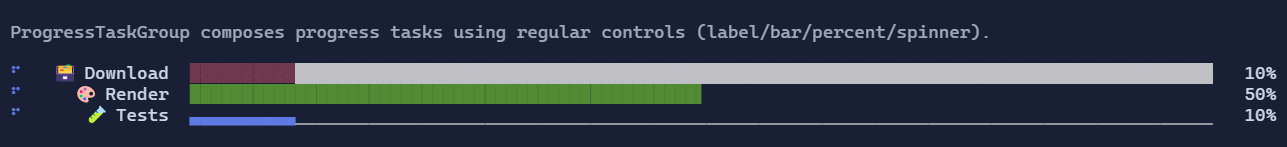

ProgressTaskGroup displays a set of progress tasks as rows with configurable columns (label, progress bar, percentage, spinner…).

ProgressTaskGroup

Basic usage

var work = new ProgressTask("Work");
var download = new ProgressTask("Download") { Maximum = 1024 };

var group = new ProgressTaskGroup()
    .Tasks([work, download]);

// Update progress values from your update loop:
work.Value = 0.5;
download.Value = 512;

Per-task styling

Tasks can customize how their cells are built per column (for example, to color a specific bar differently than the rest).

var download = new ProgressTask("Download")
    .StyleBar(ProgressBarStyle.Bracketed);

Columns

You can reorder, replace, or add columns using ProgressTaskGroup.Columns.

var group = new ProgressTaskGroup()
    .Columns([
        ProgressTaskColumns.Spinner(),
        ProgressTaskColumns.Label(),
        ProgressTaskColumns.Bar(),
        ProgressTaskColumns.Percentage(),
    ]);

To create a custom column, build visuals from the provided task:

var etaColumn = new ProgressTaskColumn(task => new TextBlock(() => $"v={task.Value:0.##}"));

var group = new ProgressTaskGroup()
    .Columns([ProgressTaskColumns.Label(), etaColumn, ProgressTaskColumns.Bar()]);

Defaults

  • Default alignment: HorizontalAlignment = Align.Stretch, VerticalAlignment = Align.Start
