NumberBox

NumberBox<T> is a single-line numeric editor built on the TextEditorCore infrastructure. It provides caret/selection/clipboard support like TextBox, while keeping a bindable numeric Value.

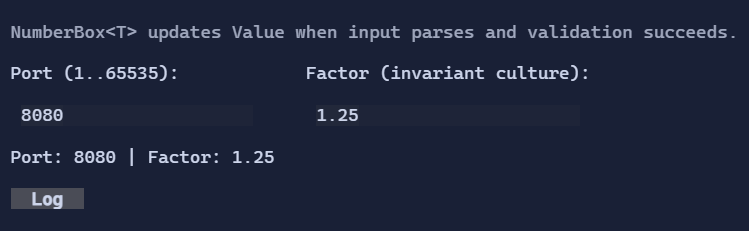

Screenshots: docs/images/numberbox-basic.png (placeholder)

NumberBox

Basic usage

var age = new State<int>(42);

var ui = new NumberBox<int>()
    .Value(age);

Undo / redo

NumberBox supports undo/redo:

  • Ctrl+Z: undo
  • Ctrl+R: redo

See Undo/Redo.

Validation

Validation runs on each text change:

  • If the text parses successfully (as T) and ValueValidator returns null, the Value is updated.
  • Otherwise Value is not updated and a validation message is shown below the editor.
var port = new State<int>(8080);

var ui = new NumberBox<int>
{
    ValueValidator = v => v is >= 1 and <= 65535 ? null : "Port must be in [1..65535]",
}.Value(port);

Parsing settings

You can control parsing via:

  • ParseStyles (default: NumberStyles.Number)
  • FormatProvider (default: null meaning current culture behavior for parsing/formatting)
var ui = new NumberBox<double>()
    .ParseStyles(NumberStyles.Float)
    .FormatProvider(CultureInfo.InvariantCulture);

Defaults

  • Default alignment: HorizontalAlignment = Align.Start, VerticalAlignment = Align.Start

Styling

The validation message is styled via NumberBoxStyle (NumberBoxStyle.Key).

var ui = new NumberBox<int>()
    .Style(NumberBoxStyle.Default with
    {
        ValidationPrefix = "Error: ",
    });
